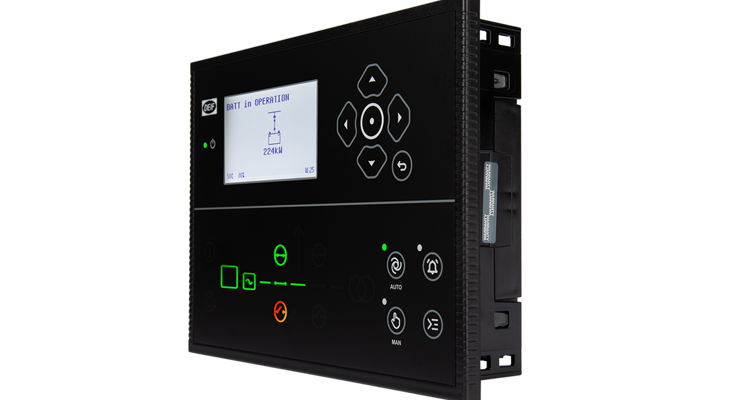

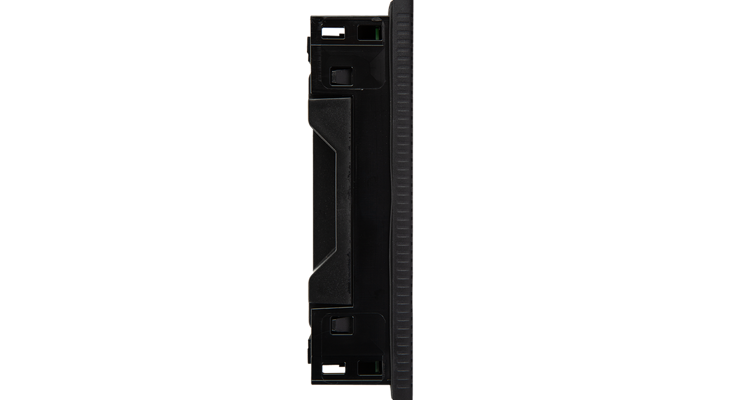

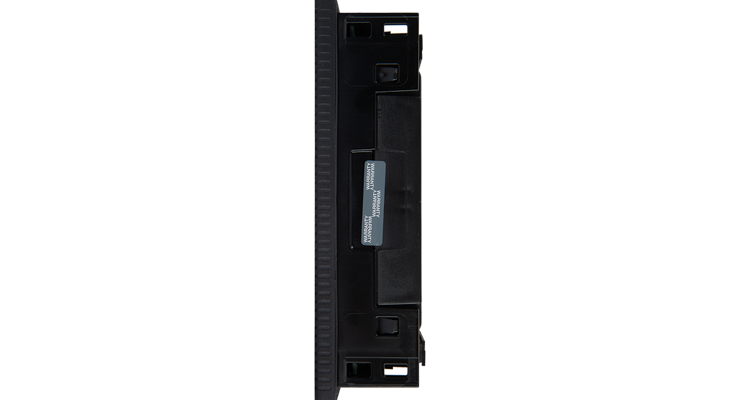

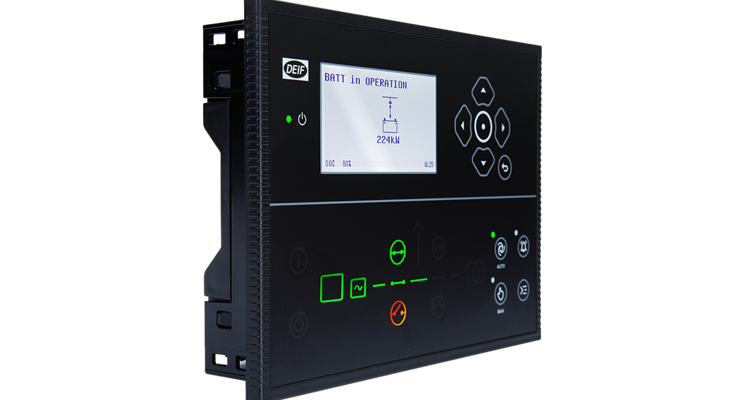

The iE 150 Marine is a cost-effective controller for non-oceangoing ships such as in-harbour ships, riverboats, crew boats, coasters, and pleasure craft. It provides asset control and protection plus the ability to set up power/energy management systems that optimise efficiency and save fuel.
Control and protect your onboard assets
With the iE 150 Marine, you can manage generators, energy storage systems (ESS), bus tie breakers, and shore connections using the built-in software. The device provides all the control and protection features you need, from engine protection and fuel usage monitoring to automatically using an ESS for spinning reserve to support load deviations.
Simple and effective power management
You can set up simple and effective power/energy management systems with up to 7 energy sources. This gives you stable operation and reliable power round the clock, and it optimises fuel consumption and balances the loads in the system. The iE 150 Marine supports multi-master control: If the current master controller fails, another takes over master controller duties, and all other controllers continue to operate.
Need E27 cybersecurity and more energy sources?
Check out the iE 250 Marine!
Dynamic positioning or other advanced features required?
Check out the iE 350 Marine!
Ideal for battery retrofit
The ability to control and protect an ESS makes the iE 150 Marine ideal for replacing one or more onboard generators with a battery pack. This helps you run the remaining gensets more efficiently and reduce fuel consumption and emissions. The iE 150 Marine is widely compatible with other devices and can be used in solutions with full DEIF control or mixed controller brands.
Easy to use, easy to reconfigure

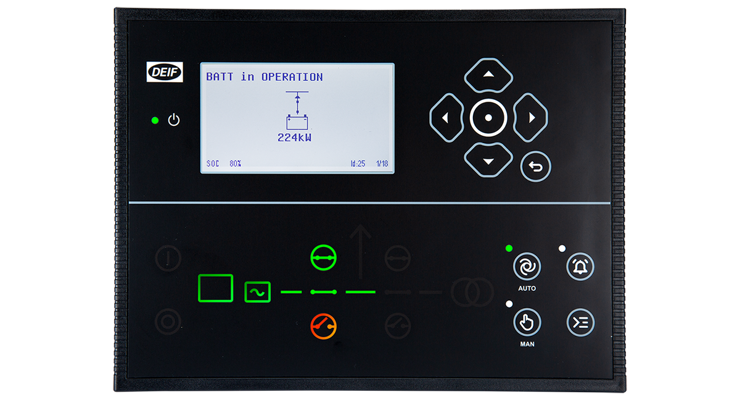

Using and reconfiguring the iE 150 Marine is very easy. The illuminated buttons on the front-mounted device guide you, and you only see options that are relevant for the present function. The controller is password-protected, and you can configure the necessary permission levels. And because it comes with all necessary control software, you can quickly reconfigure it for different applications by accessing its parameters from the display or the PC tool.
For vessels with up to seven energy sources, the iE 150 Marine gives you reliable and cost-effective asset control and power management with all the features you need to ensure uninterrupted and efficient power delivery.
-
Contact us to discuss your options
